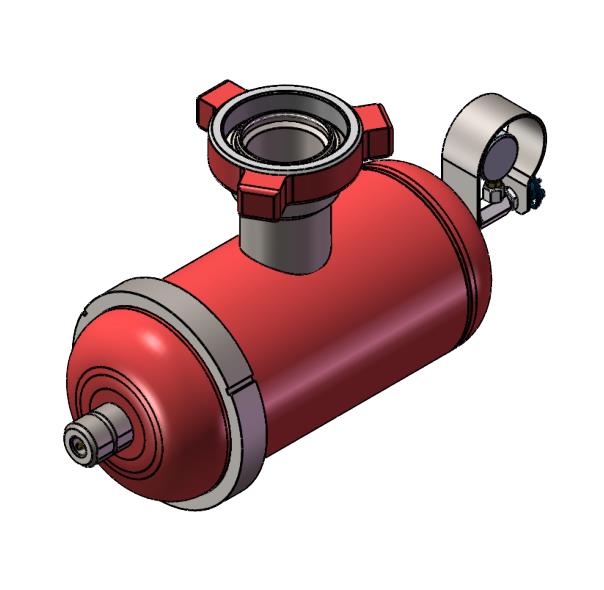

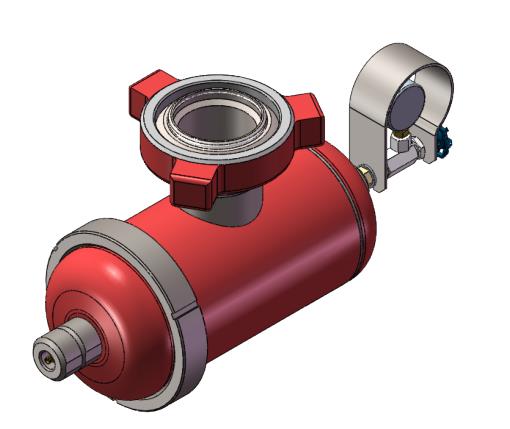

Sh648-1 suction buffer is a special device specially designed for fracturing operation. It is mainly used at the front end of the suction manifold of the fracturing pump to ensure the stability of the suction valve body when the fracturing pump is working.

The buffer uses gas to absorb the energy of fracturing fluid impact and release it gently to prolong the time of velocity change, so as to reduce the large impact of fracturing pump components and avoid collision damage, so as to ensure the stability of the suction valve body when the fracturing pump is working.

product feature

Feactures:

--The maximum working force of SH648-1 suction buffer is 4.8mpa, and the maximum precharging pressure of air bag is 0.4mpa.

--The pressure gauge should be observed before use to confirm that the air bag does not leak. If the air bag leaks, the air bag must be replaced before use.

--The charging valve interface is M8 x 1.
